Name: IOTA DLS-15 | IOTA 12v 15 Amp Power Converter / Battery Charger
Brand: Iota
SKU: DLS-15
Price: 123.95 USD
Availability: InStock
Rating: 5 (1 reviews)

Overview

The IOTA DLS-15 is a 12v 15 Amp Power Converter/Battery Charger from IOTA Engineering converts nominal 108-132 AC voltage to 13.4 DC voltage for both DC load operation and 12V battery charging.

As a power supply the IOTA DLS-15 has tightly controlled regulation allows the user to operate a nominal 12VDC load up to 15 amps.

The unit comes with a Dual Voltage Jack and when installed the DLS-15 act like a bulk battery charger delivering 14.2v and its full-rated current until the Dual Voltage Jack is removed. Please note this is not a smart charging mode and needs to be carefully monitored to prevent battery damage.

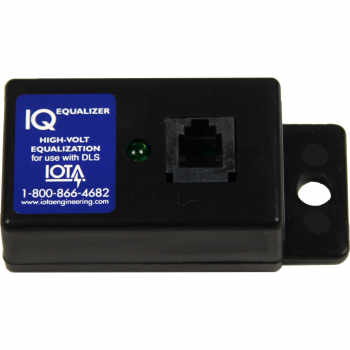

The IOTA DLS-15's Dual Voltage Jack Port supports optional IQ4-Smart Controllers to make the DLS-15 capable of smart charging various battery types such as Flooded, AGM, and Lithium Iron Batteries. IOTA offers a few additional IQ4-Smart Controllers available to optimize charging methods such as Parallel Charging, Extended 40-HR Bulk Charging (for Large Battery Banks), Turbo-Charging for a faster charge cycle, and Equalization Charging.

The Iota Converter/Charger is a 12v Power-Supply or bulk 12v charger charging at 14.2 Volts. The unit is not a smart charger unless purchased with an optional IQ-4 Smart Controller.

Features

Manual Switch-mode technology
Exceptionally clean DC output
Tight line-load regulation
Quickly and efficiently bulk charges batteries
Designed to withstand low transient AC line voltage
Current limit and thermal/overload protection
Lower operating temperature
Quiet fan operation
External reverse polarity fuse protection from incorrect battery connection
High and normal-stage charging jack via Dual Voltage Jack
Compatible with the IOTA IQ4 Charge Controller for Smart Charging
2 Year Warranty

This Product Replaces These Other Products

Works In

Vehicles that DLS-15 works in

Technical Specifications

Dimensions (LxWxH): 9.7 x 6.7 x 3.4 in
Weight: 4.5 lb
Output Amperage, Max Continuous: 15 A
DC Output Voltage (Power-Supply Mode): 13.6 V
DC Output Voltage (Full Load) Approx.: >13.4V
DC Output Voltage (Bulk Charge Mode): 14.2 V
Output Voltage Tolerance (No Load): +/- 0.7%
Absorption Voltage: 14.16 V
Maximum AC Current @ 108 VAC: 3.7 A
AC Input Volts Freq.: 47 - 63 Hz
AC Input Volts Range: 108-132 VAC
Typical Efficiency: 80%
Maximum Power Output, Continuous: 200 W

Maximum Inrush Current, Single Cycle: 30 A
Working Temperature: 0° to +40° C
Storage Temperature: -20° to +80° C
Over Temperature: Off at 80° C
Ripple and Noise: 100 mV RMS
Enclosure: Aluminum Case
Output Banks: 1
Shipping Weight: 7 lb
UPC: 040232430008
Manufacturer: Iota
Manufacturer’s Part Number: DLS-15
Model: DLS-15
