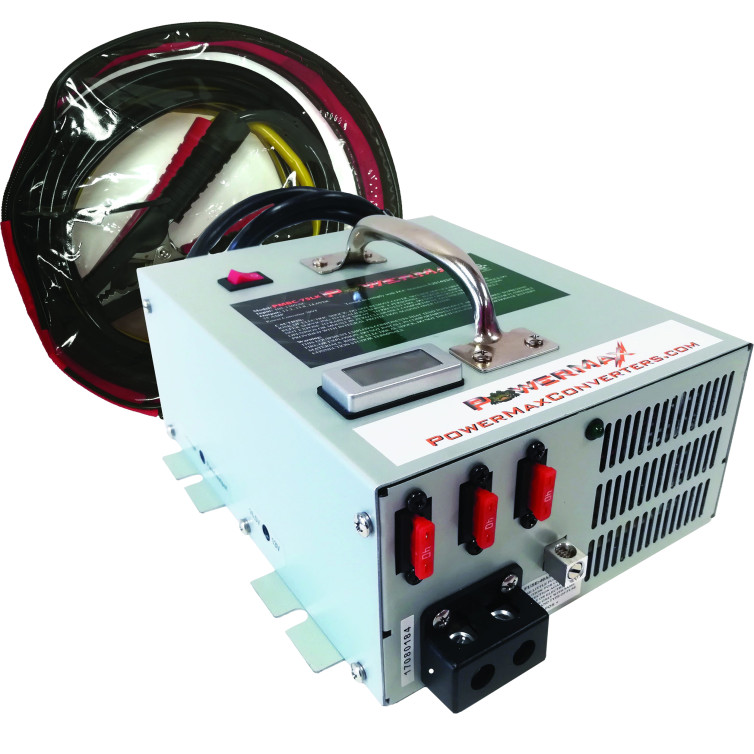

PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps

PART NUMBER: PMBC-100LK
zoom photos PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps
PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps
PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps
PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps
Share this item
share PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps on Facebook share PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps on Twitter share PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps on Pinterest

PowerMax PMBC-100LK | 12v 100 Amp Charger Converter Power Supply w/ Alligator Clamps

PART NUMBER: PMBC-100LK
★★★★★ (2) Leave a review →
Free Ground Shipping to Lower 48 States *
-16% $29895 Currently in Stock
Normal Price: $357.95
Link copied to clipboard
Visa
mastercard
discover
american express
PayPal

OR

  • On/Off Switch
  • DC Output Cable: 15ft
  • Variable Speed Cooling Fan
  • Digital Output Voltage Display
  • Demand Sensing
  • Part Number: PMBC-100LK

Overview

The PowerMax PMBC-100LK charger/converter has a fully integrated 3-stage microprocessor controller along with its highly controlled power supply output. The LK Series features a selector between 3-Stage Smart charging or Fixed Output Mode*. A key feature to the PMBC Series charger is being able to provide clean constant fixed output power to a vehicle during reprogramming and diagnostic servicing.

Using only the best in manufacturing technology, Power Max has designed and built a powerhouse charger/converter. Capable of provinding a constant load demand of up to 100% of its rated capacity, the PMBC series converters are among the best. Pumps, fans, motors, and radio equipment will run with no problems on the PMBC converter/charger.

Note:

*The Fixed Output Mode does not offer smart charging and simply outputs at the fixed voltage. Users are highly recommended to use the 3-Stage charging mode to safely charge a battery.

*The Fixed Output Mode does not offer smart charging and simply outputs at the fixed voltage. Users are recommended to use the 3-Stage charging mode for safe charging.

Features

  • Selectable 3-Step Charging Mode or Fixed Output Mode
  • Adjustable Voltage Dial - Output Voltage can be set between 13 VDC – 16.5 VDC to meet most vehicle battery requirements including most Lithium.
  • Smart Battery Charging Mode for general battery care and maintenance – 14.6VDC / 13.6VDC / 13.2VDC
  • On/Off Switch
  • DC Output Cable: 15ft
  • Variable Speed Cooling Fan
  • Digital Output Voltage Display
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Line Regulation
  • Load Regulation
  • Thermal Protection
  • 2 Years Warranty

This Product Replaces These Other Products

Works In

Vehicles that PMBC-100LK works in

Technical Specifications

  • Dimensions (LxWxH): 7.15 x 11 x 5.48 in
  • Weight: 11 lb
  • Output Amperage, Max Continuous: 100 A
  • Max Current, During Bulk Charge: 100 A
  • Output Voltage Full Load: 13.4 V
  • No Load Voltage: 13.6 V
  • Maximum AC Current @ 108 VAC: 17 A
  • AC Input Volts: 115 V
  • AC Input Volts Freq.: 47/63 Hz
  • AC Input Volts Range: 105–135 V
  • Float Current: Variable
  • Bulk Voltage: 14.6v ± 0.2v (default) / Adustable between 13v to 16.5v
  • Float Voltage: 13.2 V
  • Typical Efficiency: 85%
  • Maximum Power Output, Continuous: 1440 W
  • Charge Reset: Battery Voltage Threshold: 12.6 V
  • Working Temperature: 0° to 45° C
  • Storage Temperature: -20° to 80° C
  • Over Temperature: 80° C
  • Ripple and Noise: 100 mV rms
  • DC Output Cable Length: 15 ft
  • Output Banks: 1
  • Shipping Weight: 14 lb
  • UPC: 685867998433
  • Made in: China
  • Manufacturer: Power Max
  • Manufacturer’s Part Number: PMBC-100LK
  • Model: PMBC-100LK
