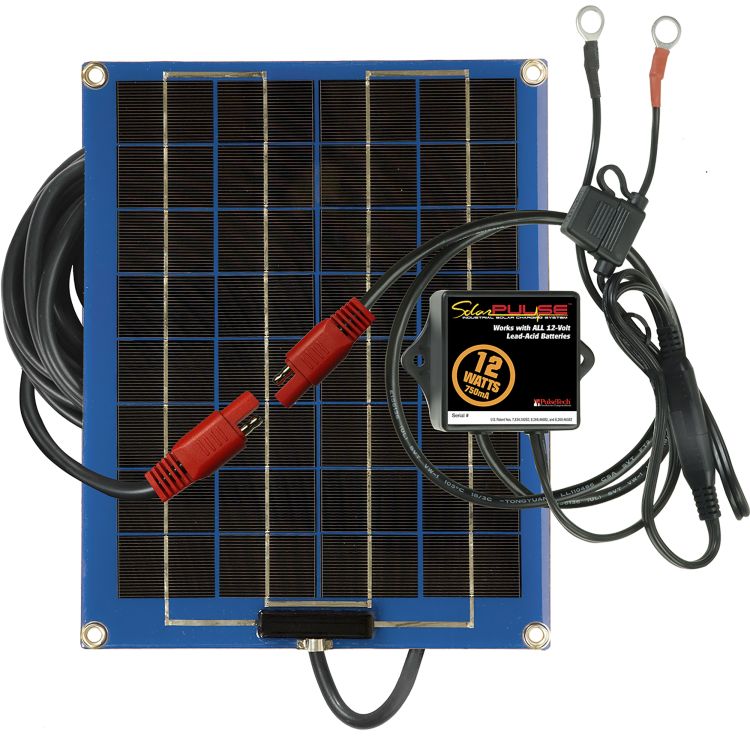

The PulseTech SP-12 (Part# 735X468) SolarPulse is a 12v 12-watt solar battery charger and maintainer. The SP-12 kit features a 12-watt panel that outputs 750 mA and a PulseTech patented high-frequency pulse circuit.
The SP-12’s high-frequency pulse actively desulfates the battery and ensures the battery can start and release maximum power when needed. PulseTech’s high-frequency pulse helps to keep batteries fresher longer and has been known to extend battery life three times longer over non-maintained batteries.
The PulseTech SP-12 is virtually indestructible. The crystalline silicon cells are encapsulated in a clear polyurethane coating and mounted on a laminated aluminum substrate back plate less than ¼” thick. With no glass to break, the panel is virtually indestructible, weatherproof, and resistant to damage.
What’s in the Box:
PulseTech SP-12 Solar Panel (Part# 735x468)
SP-12 High-Frequency Controller
Quick Disconnect Ring Harness
It features a solid LED light - indicator of full sunlight/working at optimum level. The light fades when the panel is exposed to partial sunlight. Reverse polarity protected.
Features
Works on ANY 12V lead-acid battery (VRLA, AGM, gel and flooded cell)
Peak Output Current 750 mA.
Provides approximately 3 to 4.5 Amps a day (dependent on sunlight conditions).
Keeps up to 4 batteries connected in parallel in peak condition!
Maintains batteries at full state of charge
Dramatically reduces jumpstarts
30% smaller footprint than typical panels
Commercial grade solar panel is virtually indestructible
Patented Pulse Technology extends battery life up to 3X
Supports sustainability programs
Reverse polarity protected
Ten-Year Limited Warranty
This Product Replaces These Other Products
SP-10 (Part# 735X310)
Works In
Vehicles that SP-12 works in
Technical Specifications
Dimensions (LxWxH): 12.41 x 9.85 x .2 in
Controller Length: 3.4"
Controller Width: 2.4"
Controller Height: 1.5"
Weight: 2.5 lb
Shipping Weight: 4 lb
Box-to-Lug Wire Length: 3 ft
Box-to-Panel Wire Length: 17 ft
Desulphation Pulse: Constant
Panel Rating: 12 Watt
Output Current: 750 mA
Output Voltage: 16.5v
Operating Temperature: 0ºF to 130ºF (-18ºC to 54ºC)
Do you own the SP-12? Please, tell us what you think about it. It helps us provide you with better products. Please note that it may take up to 72 hours for your review to appear.
★★★★☆
Charging so far
Using this to maintain a car battery that doesn't get used very much. I do wonder about the charge. It maintains the battery but at 12.52 volts, it seems low to me. I installed it in July. (2023)
I checked the voltage when the sun was shining, and the charge controller was flashing the red light. (charging) The battery still read 12.52 volts.
Is this review helpful?
Written byJeffrey on Aug 28, 2023.
Verified Purchase
— (1 of 1 customers found this review helpful)
★★★★★
Hard to Tell
I installed the PulseTech SolarPulse SP-3 Solar Battery Charger Maintainer, 3 Watt, Blue. Once installed there is no test point to attach a volt meter, and no instruction as what to look for. It's installed on lid of tool box on trailer to keep emergency brake battery charged. The emergency battery is very small, but the trailer is park in RV storage lot with covered parking. I have pic's to share
Is this review helpful?
Written bySteve on Jun 26, 2023.
— (1 of 1 customers found this review helpful)
