Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2

PART NUMBER: MC4-2
zoom photos Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2
Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2
Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2
Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2
Share this item
share Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2 on Facebook share Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2 on Twitter share Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2 on Pinterest

Samlex America Solar Panel MC4 Multi-Contact Connectors MC4-2

PART NUMBER: MC4-2
Leave a review →
This item qualifies for
$7.50 Flat Rate Shipping *
-43% $1995 Currently in Stock
Normal Price: $34.95
Link copied to clipboard
Visa
mastercard
discover
american express
PayPal
OR
  • Easy to install
  • Series connection type
  • Part Number: MC4-2

icon Important Notice

This Qualifies for FLAT RATE Shipping of $7.50 per order*

Overview

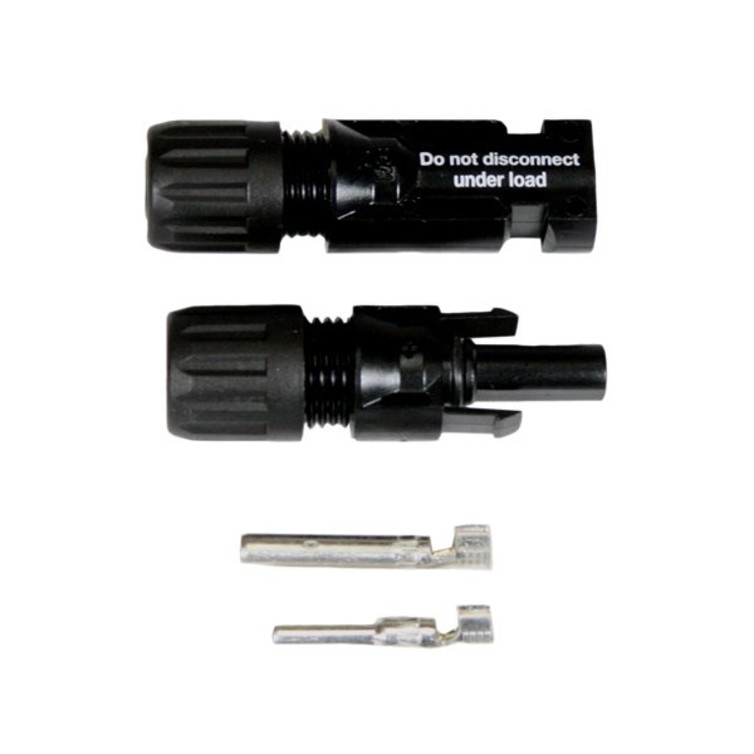

Samlex's MC4-2 Kit contains 1 male and 1 female MC4 solar panel connector. This type of connector system is easy to install and uses “snap-in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection. Also when locked, the mating contacts are sealed against ingress of dust and water.

*Flat Rate shipping is for the lower 48 states only.

Features

  • Easy to install
  • Snap-in type of safety locking tabs
  • Contacts are sealed against ingress of dust and water
  • Series connection type

This Product Replaces These Other Products

Works In

Vehicles that MC4-2 works in

Technical Specifications

  • Dimensions (LxWxH): 2 11⁄32 x 23⁄32 x 23⁄32 in
  • Weight: 0.2 lb
  • Shipping Weight: 1.0 lb
  • Wire Size: AWG #10 or AWG #12 with outer insulation diameter of 3 – 6 mm
  • Maximum rated current: 30 A
  • Maximum system voltage: 1000 V
  • IP Rating when connected and properly locked: IP67
  • Temperature range: -40° C to +90° C
  • Regulatory Approval: TÜV Rheinland – type approved, UL listed
  • Warranty: 2 Years
  • UPC: 622988180712
  • Manufacturer: Samlex
  • Manufacturer’s Part Number: MC4-2
  • Model: MC4-2
